3D model of two offset 180° magnetic seals for a 180° door-to-door situation

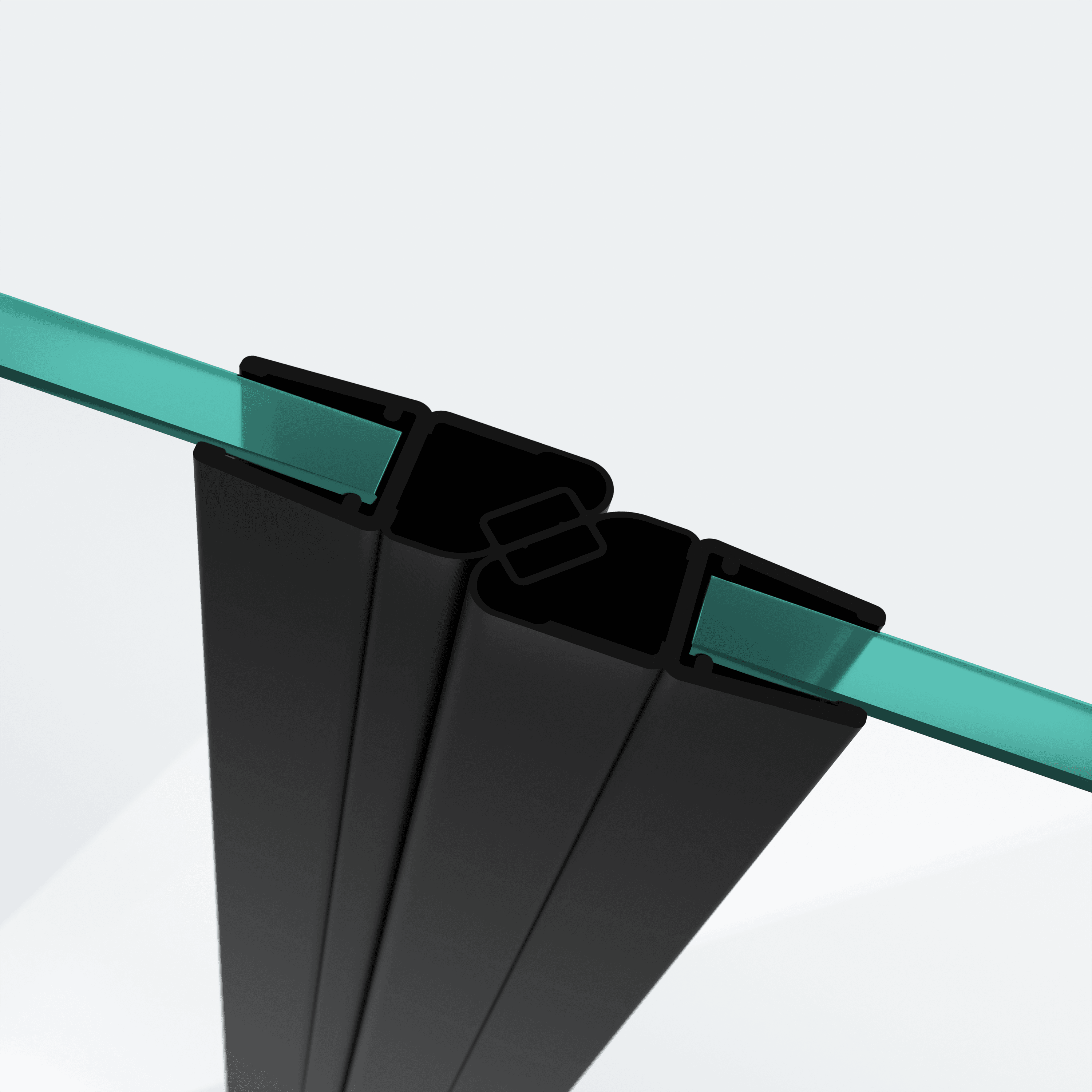

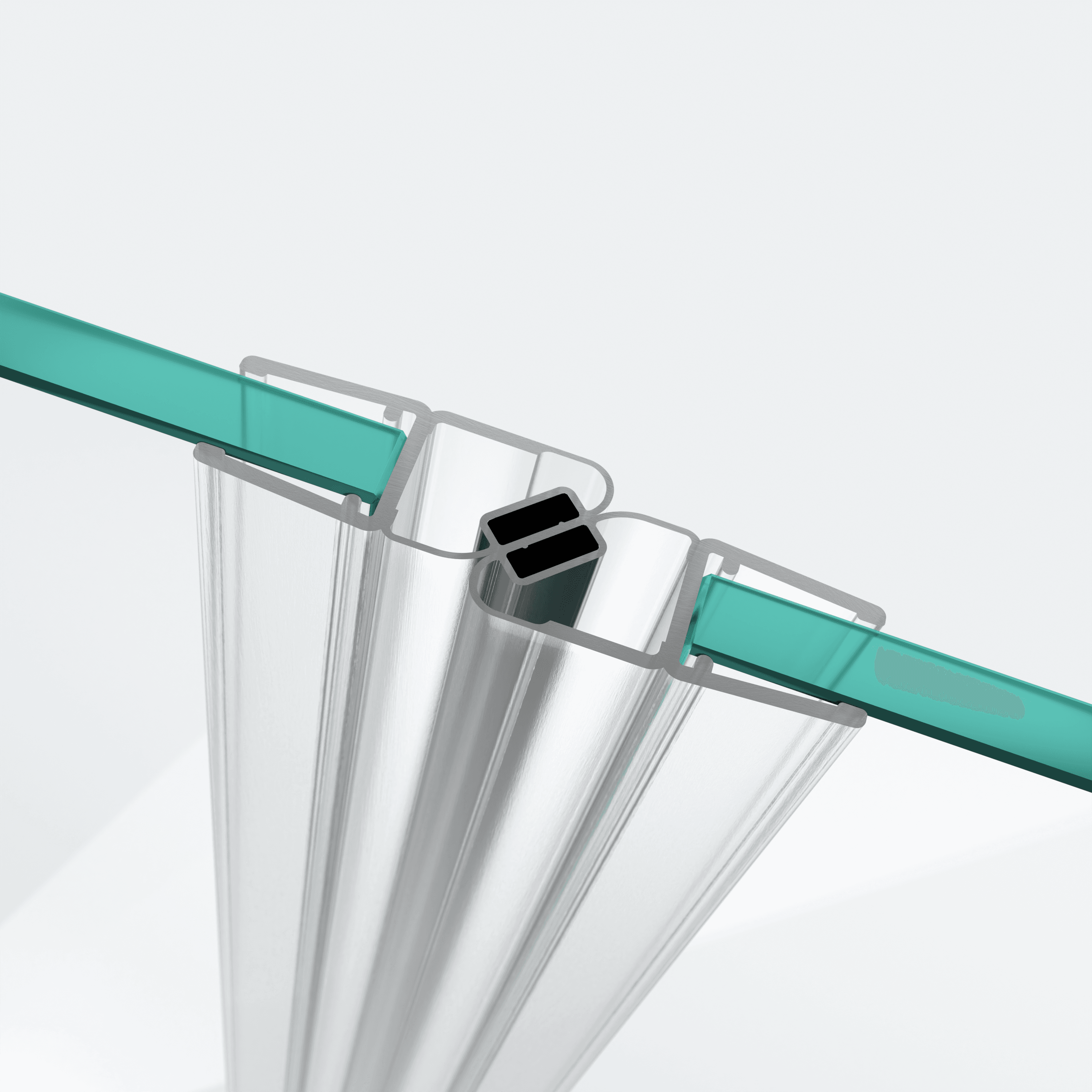

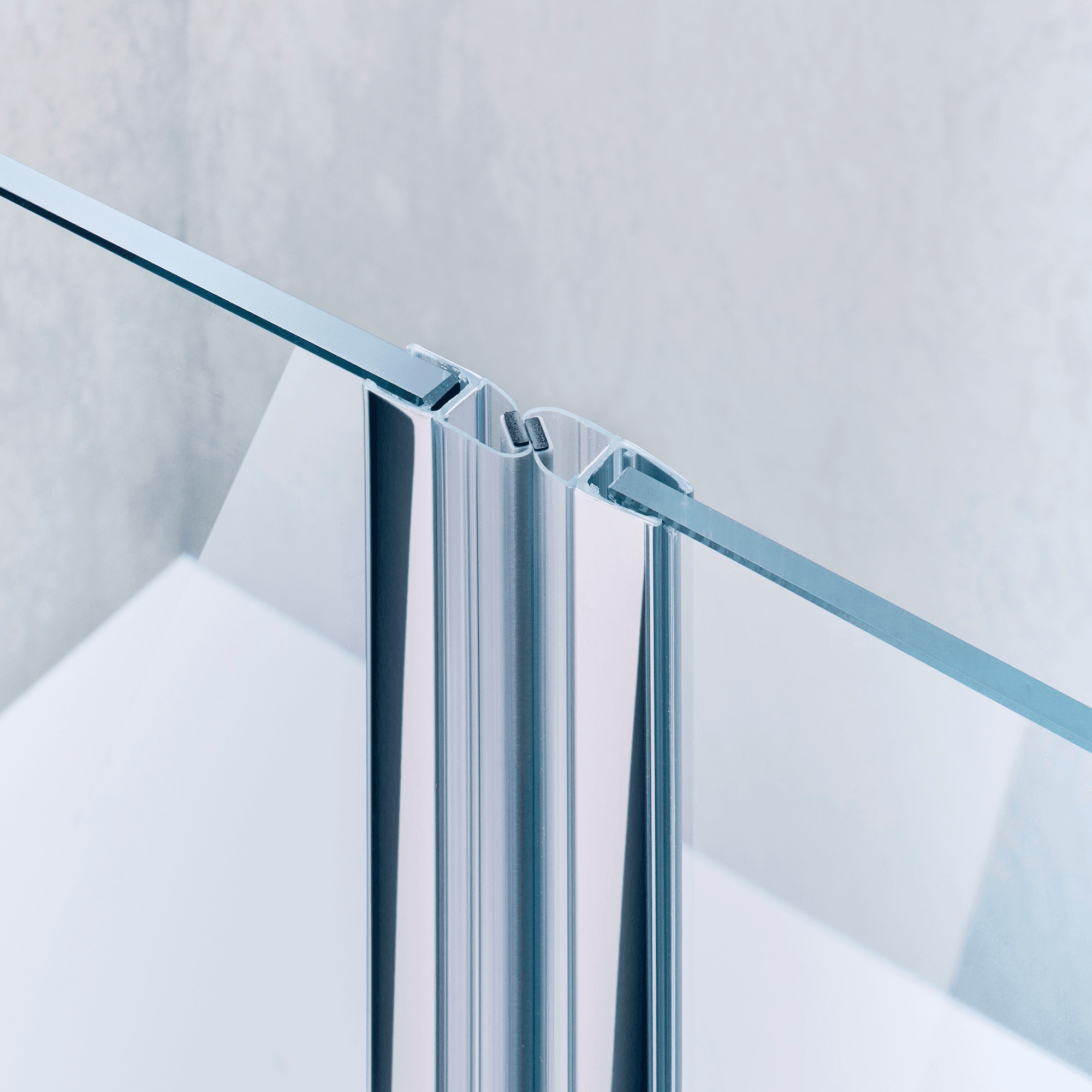

3D model of two offset 180° magnetic seals for a 180° door-to-door situation3D model of two offset 180° magnetic seals for a 180° door-to-door situation in blackExample of two offset 180° magnetic seals for a 180° door-to-door situation in chromeTechnical drawing of an offset 180° magnetic seal for 4-5mm glass thickness with captionTechnical drawing of an offset 180° magnetic seal with north-south polarity for 6-8mm glass thickness with caption

You will receive a complete set of magnetic strips (2 pieces of sealing strips North/South polarity). This door sealing profile with an integrated magnetic strip was designed for all glass walls with a thickness of 4-8 mm and is pushed directly onto the glass.

As a door seal, this model closes slightly offset (due to 2 x 45°), but when the door is closed, this variant also results in an angle of 180°. With a glass thickness of 8 mm, the gap width between the closed doors is 24 mm and with 6 mm glass thickness 22 mm.

The magnetic seals are in their rigid and soft PVC component transparent-clear, chrome-coloured or black, and the magnetic casing is light grey. The adhesive force of each strip is 0.18 N/cm. Each profile ensures a reliable seal and visually blends perfectly into your bathroom.

We offer this profile in lengths of 200 cm and 250 cm. You can easily and precisely cut this shower strip to your required length and install it without special tools, for example with standard anvil shears, a PUK saw, or mitre shears.

For further support, we are available by telephone or via our contact form. You are also welcome to send us a photo of your old shower door seal to find the suitable replacement seal.

Care tip: The seal should only be cleaned with chlorine-free, non-alkaline cleaning agents. Avoid abrasive cleaners and scouring pads to maintain the longevity of the material and to preserve the transparent design and water repellency in the long term. Lukewarm water combined with soft microfibre cloths is ideal for this.

  • Corner shower cabin with two doors on one side
